Rizoma Mineral Clutch Liquid Tanks SERIES CTM
The Rizoma SERIE CTM tank seals are designed to work with MINERAL CLUTCH LIQUID normally used by BMW and KTM on the Magura clutch pumps.
You can easily check which fluid uses your clutch pump by reading the warnings printed over the standard tank cover.
Rizoma produces three CTM Tank Lines:

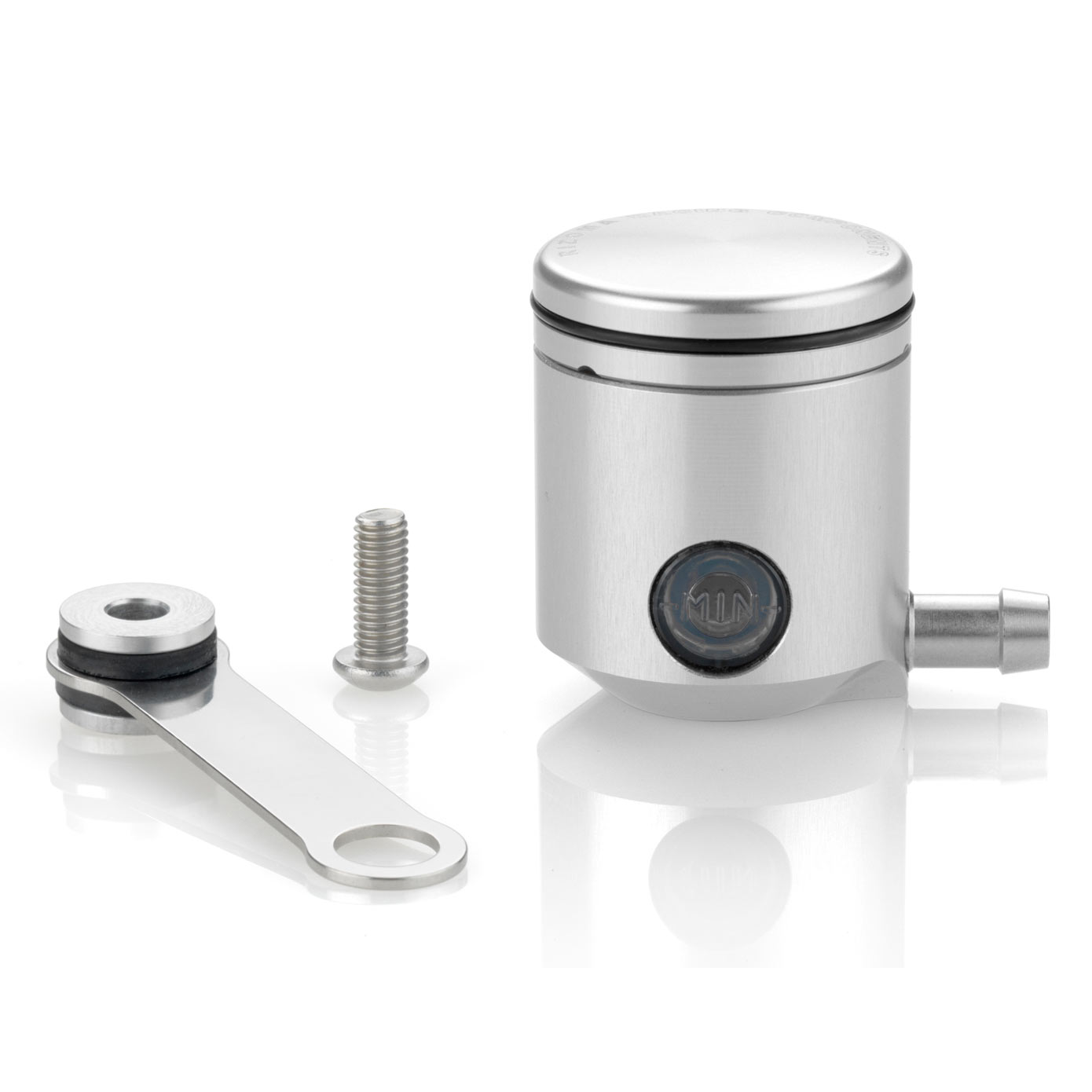

The First Series, nowadays a classic, the Shape remembers the Piston, each including a bracket or tie so as to facilitate positioning
NEXT: They represent a completely new, unconventional line that reinterprets the purely functional concept of this element to turn it into a distinctive object. Thanks to the use of different materials and surface treatments, a contrast of colors, lights and reflections is created that by amplifying simple and clean lines, give you the ultimate elegance and a completely new line. The CTM125 includes 3 adapters (1 x 7mm and 1 x 8mm at 90 degrees, 1 x 8mm straight).
WAVE: Elegant design, Functional and aesthetic transparent pan, made of fully-made aluminum.
CT135 includes 3 adapters (1 x 7mm and 1 x 8mm at 90 degrees, 1 x 8mm straight).
CTM017
CTM025
CTM125
CTM135
Capacity
26 ml
Capacity
27 ml
Capacity
30.6 ml
Capacity
-
Volume
15 cm³
Volume
15 cm³
Volume
17 cm³
Volume
16 cm³
Height
49 mm
Height
49 mm
Height
49 mm
Height
50 mm
Diameter
40 mm
Diameter
40 mm
Diameter
36> 60 mm
Diameter
42 mm
Adapters
1 x 7mm
Adapters
1 x 7mm
Adapters
3
Adapters
3
The outlet of the Next and Wave tanks can rotate 360 ° allowing tank installation to the right or left of the pump.
Next and Wave tanks are free of brackets, have a simple M6 threaded hole at the base, we recommend using the Rizoma CT450B, CT451B, CT454B, CT457B brackets.
NB: To mount the tanks you may need to remove the handrails (on the bikes that mount them as standard
Màs Información
| Codigo Producto | CTM025A |
|---|---|
| ID | 16958 |
| Color | Grey |
